• Product description:

    OUCO Mobile Harbor Cranes stand for versatility and eco-efficiency. The flexibility of the mobile harbour crane makes it effective for all areas of application in the harbour and thereby guarantee the highest level of effectiveness.



    Features of this mobile port crane:

    Multiple load types, including bulk cargo and containers;

    Crane driving with realistic port activity, such as vehicles, dock workers and other cranes;

    Integrated with machine control system;

    From ship-to-shore and ship pedestal cranes, to reachstacker and other cargo handling equipment, we offer a wide range of ports and container terminal equipment.

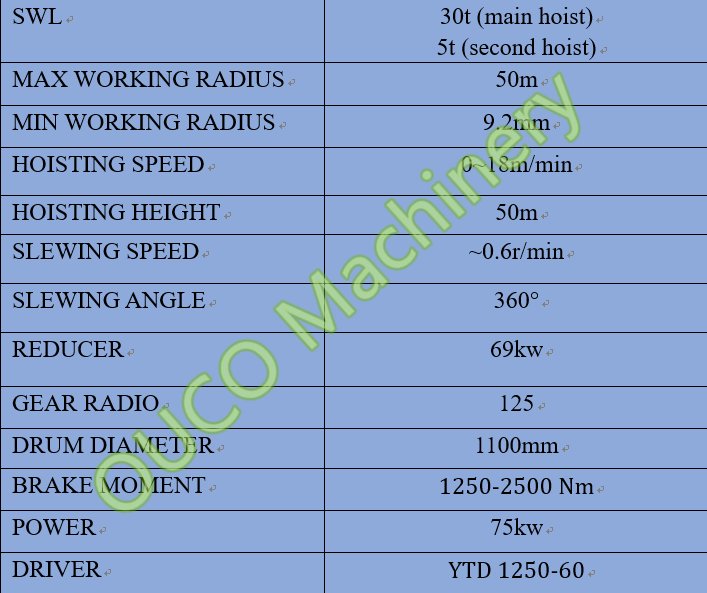

    Technical specification:

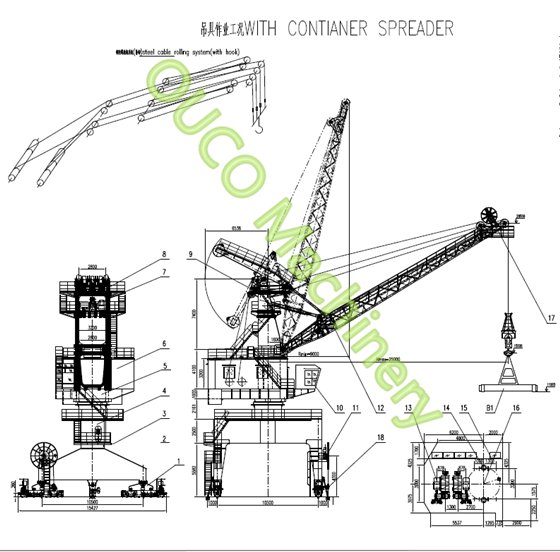

    Genernal Arrangement:

    OUCO Certifications:

    Manufacturing details at OUCO workshop:

    We pay 100% attention to the packing before shipment:


share to:

30T Mobile Port Crane
SWL(main hoist) 30t
SWL(second hoist) 5t
MAX WORKING RADIUS 50m
HOISTING SPEED 10m/min
HOISTING HEIGHT 50m
POWER 75kw
Reducer 69kw
Gear radio 125
Drum diameter 1100mm
Brake moment 1250-2500 Nm
Driver YTD 1250-60
30T Mobile Port Crane in Africa
