• Product description:

    Electrical marine cranes mainly used on the bulk carrier or barge vessels. This type of crane either can be used on deck of vessels, or at ports. All because its feathers of safety, stability, and reliability. Large lifting capacity, easy maintenance, high efficiency and low cost make this type of cranes very popular.



    Features and advantages:

    Convinence in use of port handlings;

    Cost saving by light self weight;

    Easy maintenance;

    Reasonable design for several applications.

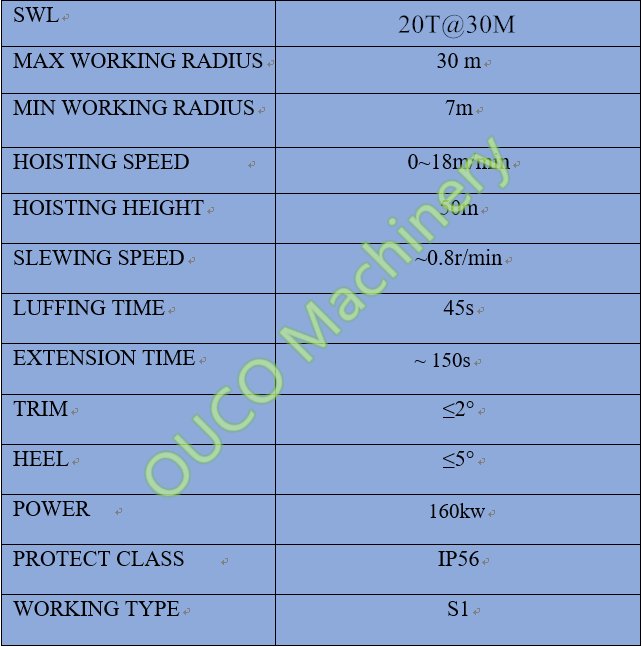

    Technical specification:

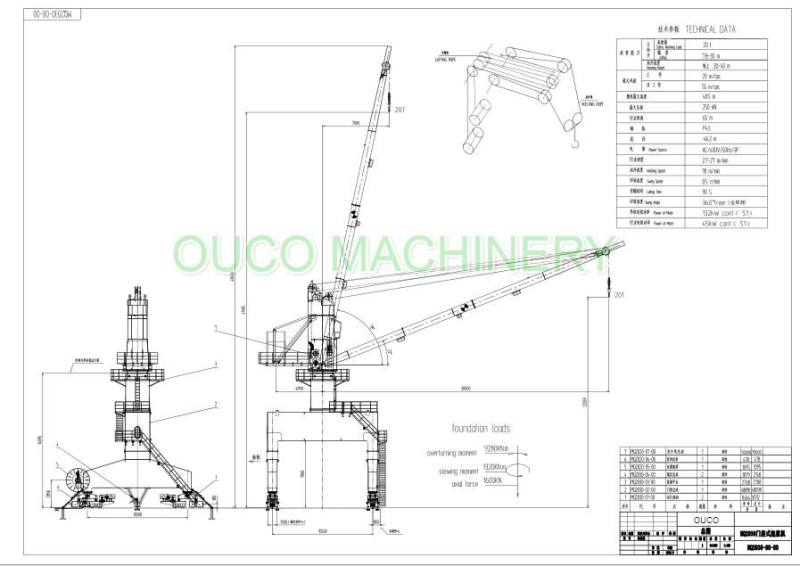

    General Arrangement:

    OUCO Certifications:

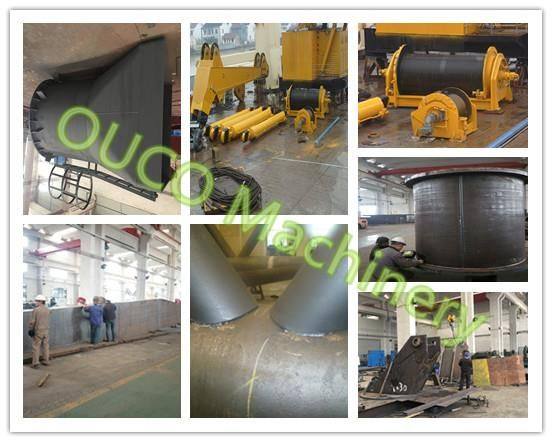

    Manufacturing details at OUCO workshop:

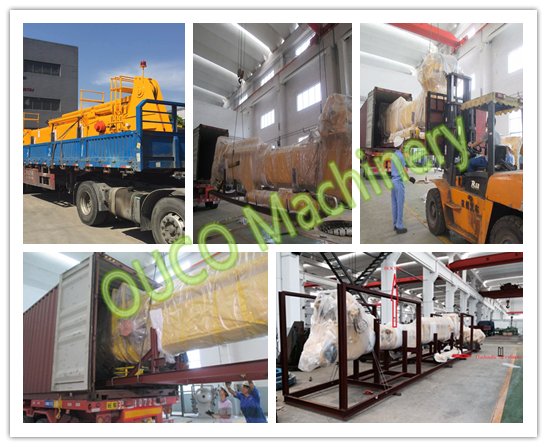

    We pay 100% attention to the packing before shipment:


Next:No More

share to:

20T@30M Electrical crane
SWL 20T@30M
MAX WORKING RADIUS 30m
MIN WORKING RADIUS 7m
HOISTING SPEED 18m/min
HOISTING HEIGHT 50m
SLEWING SPEED ~0.8r/min
SLEWING ANGLE 360°
LUFFING TIME ~ 120s
WORKING CONDITION
TRIM ≤2°
HEEL ≤5°
ELEC-MOTOR POWER Y250M-4-H
POWER 160kw
Speed 1780r/min
POWER RESOURCE AC400V/50HZ
PROTECT CLASS IP56
INSUKATE CLASS F
WORKING TYPE S1
Marine Electrical Port Mobile Crane
