Work theory

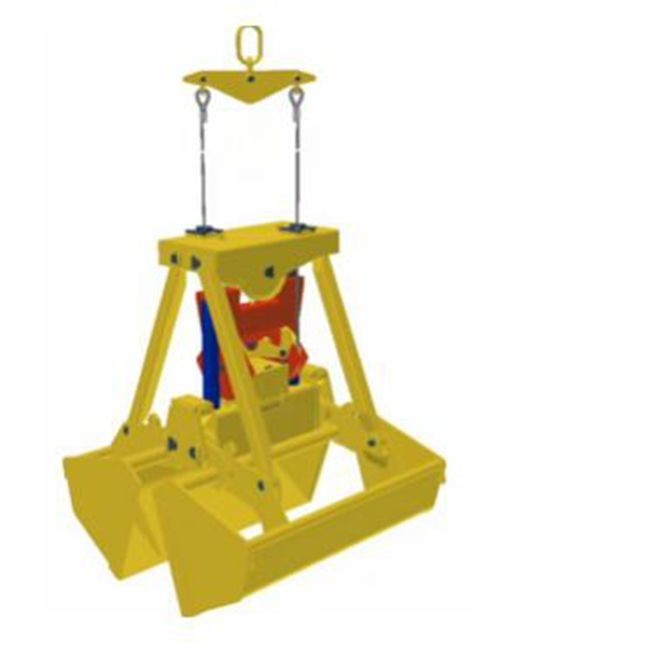

The remote control grab controls the opening and closing of the remote grab by opening and closing the main cylinder solenoid valve. When the slip block slides down to the lower bolster, the slip block is integrated with the lower bolster, and the grab can grab the cargo. When it is necessary to open the grab, press the remote control transmitter to control the solenoid valve to be energized, the hydraulic system oil circuit is opened, the slip block is separated from the lower bearing beam, and the grab is opened to release the cargo. At the same time, the sliding block moves up and collides with the upper bolster. After a delay, the solenoid valve is closed to prepare for the next operation.

Each grab include below parts

1） Hydraulic seal 1   set

2） Solenoid valve 1   set

3） Oil pipe 1   set

4） Remote control and receiver 1   set （including battery, receiver）

5） Battery 1   set

6） Battery charge 1set

7） Steel rope 1 unit （model 8X26SW+FC-36strength1770N/mm2） set

8）Gresase  nipple   20 units

Selection table

Product Details

We have examined every detail in the production process.
