12 CBM Remote Control Grab, Vessel Grab For Sale
Product Description
Remote control grab (Also known as wireless remote control grab) is a device designed for efficient loading and unloading of various bulk cargoes. It is commonly used with single-reel cranes and can handle fine ore, coal, grain, fertilizers, industrial salt, and alumina.
The wireless remote control grab combines advanced wireless remote control technology with simple hydraulic technology, resulting in exceptional performance and functionality.
This innovative grab operates without the need for an external power supply. It automatically closes when lifted by the crane hook and can be opened at any position in the air using the wireless remote control.
OUCO's 12m³ wireless remote control grab is built to the highest standards. It boasts an IP56 protection level, a signal strength of up to 200 meters, and holds CCS ship inspection certification. The modular design of its parts ensures easy maintenance and repair.
With a low failure rate and the ability to operate continuously for 24 hours, this grab is particularly suitable for long-distance voyages, providing uninterrupted performance.
Product Feature
Sealed hydraulic system to prevent seawater corrosion.
The remote control controls the opening and closing of the grab,
During the operation of the grab bucket, it can be paused at will.
High-capacity power supply, can be used for 80 hours on a single charge
Remote control imported from Italy, easy to operate and easy to use
Remote control signal range 200 meters
IP56 waterproof rating
C5M topcoat, not easy to peel off, avoid rust on the grab
The bucket body is made of hardox400 or NM450 wear-resistant steel
High efficiency

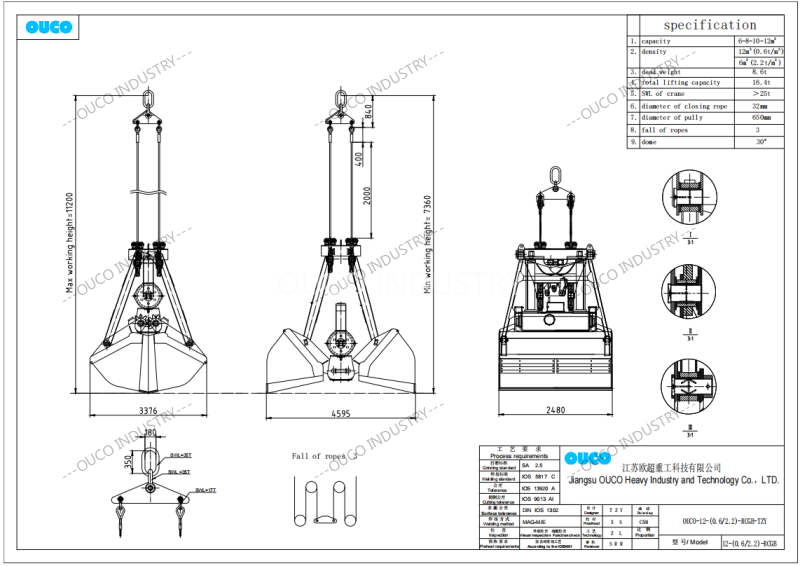

Technical specification
Product information
| Brand | OUCO |
| Usage | Loading |
| Capacity | 12 Cubic |
| Capacity | 6-8-10-12m³ |
Density | 12m³ (0.6t/m³)
6m³ (2.2t/m³) |
| Dead Weight | 11.5T |
| Total Lifting Capacity | 16.4t |
| SWL of Grab | 13T |
| Diameter of Closing Rope | 32mm |
| Diameter of Pulley | 650mm |
| Fall of Ropes | 3 |
| Dome | 30 Degree |

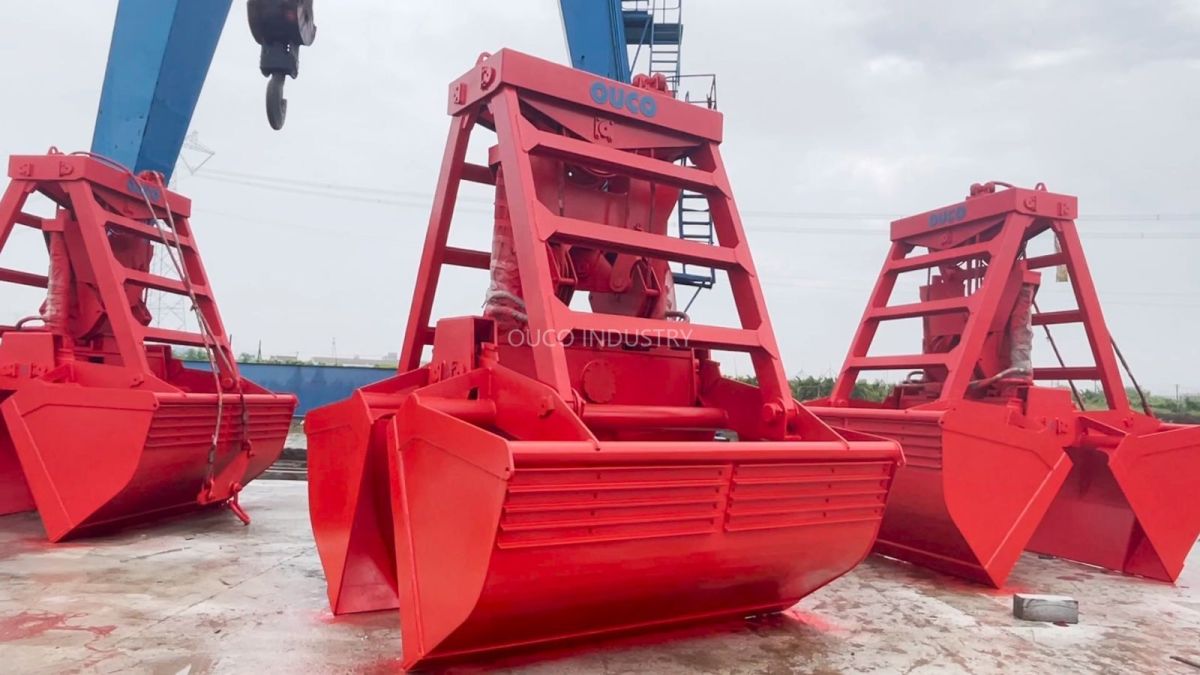

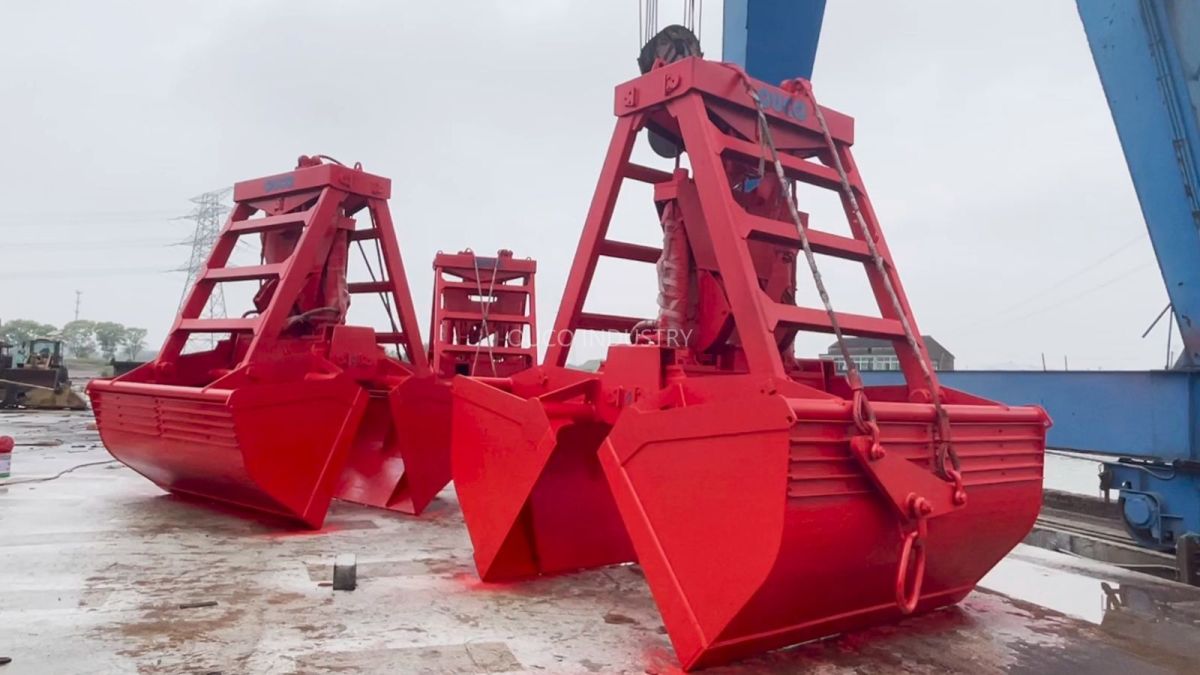

Product Pictures

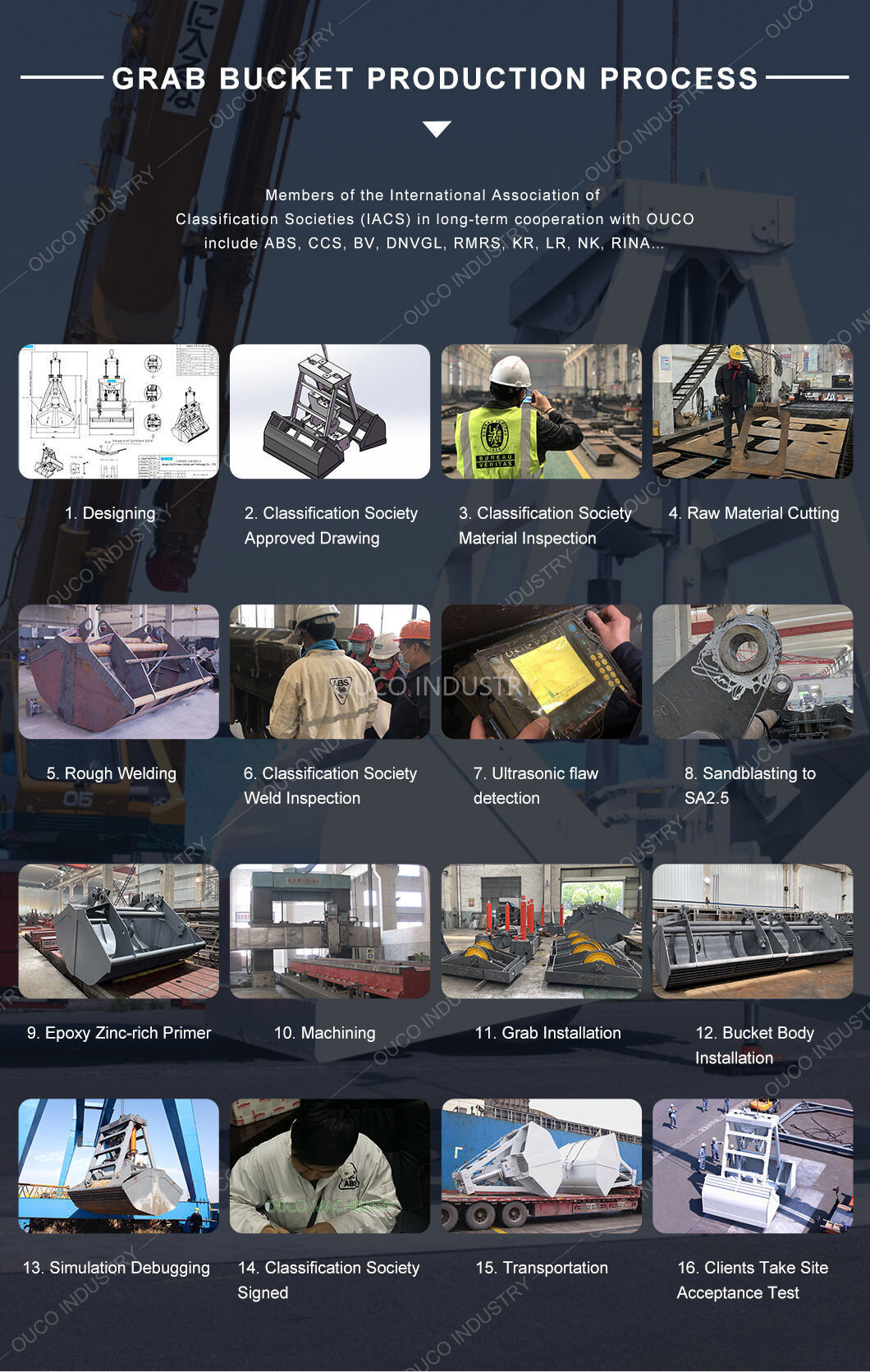

Production Process

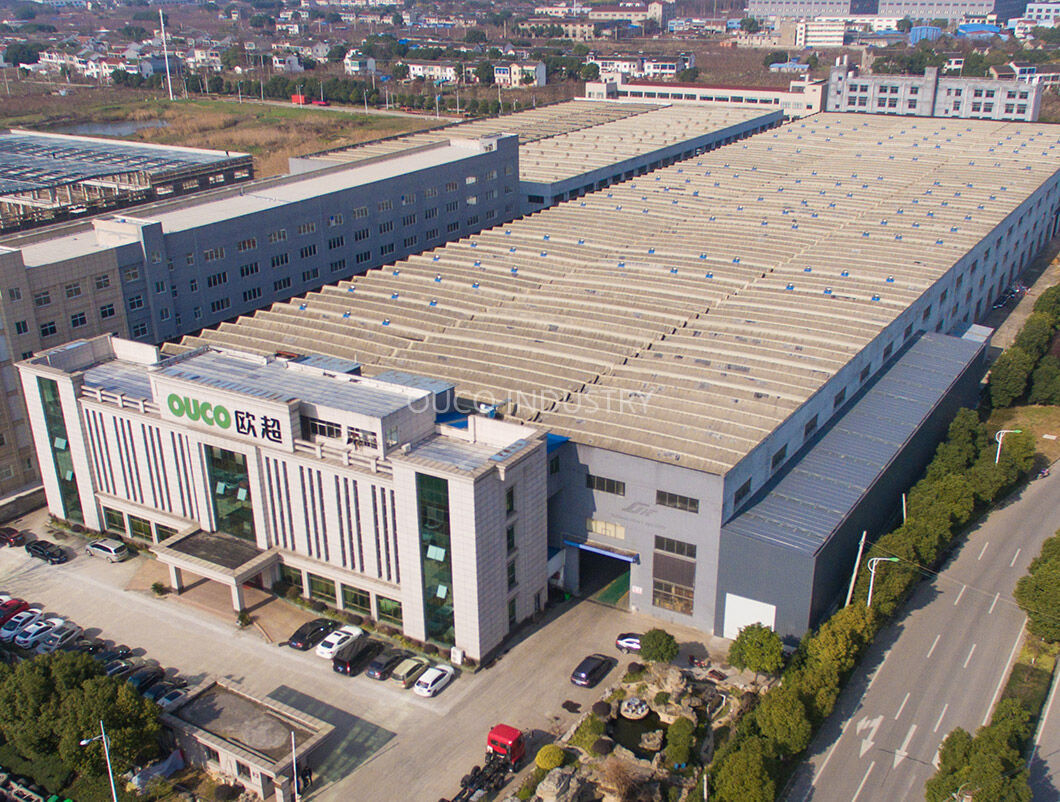

Company Information
Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
FAQ
1.Q:What's the information should I provide when inquiry?
A: More details or drawings, better.
a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.
2.Q: How many operating methods for my selection?
A:Standard operating methodsr:
a: pendent controller with push buttons. b: remote control with push buttons
c: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Q:Can this type work in hazardous environment? A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.4. Q:Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
5. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training.
6. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
