3.5T10M Knuckle Telescopic Boom Marine Crane
Engineered for modern marine operations, the OUCO 3.5T10M Knuckle Telescopic Boom Marine Crane delivers power, precision, and efficiency in a compact design. CCS-certified, it merges the flexibility of a knuckle boom with the extended reach of a telescopic boom—ideal for vessels with limited deck space needing broad operational coverage.
Unlike fixed-boom alternatives, its foldable knuckle design operates in confined areas and retracts neatly when idle, maximizing deck space. With a 10m maximum and 2.2m minimum working radius, it handles both near-deck tasks and extended offshore lifting, adapting seamlessly to supply vessels, fishing boats, and research ships for supplies, equipment, or cargo.
Powered by a high-efficiency hydraulic system, it achieves 15 m/min hoisting speed, 20m hoisting height, and 360° continuous slewing (0.6 r/min) for precise load positioning—even in Sea State 4 conditions. Its 50-second luffing time ensures responsive operation in offshore or port settings.
Constructed from high-strength marine-grade steel with multi-layer marine coating, it resists corrosion for long-term durability in saltwater environments. Premium hydraulic and electrical components from trusted global brands guarantee consistent performance and easy maintenance.
OUCO offers customization for lifting capacities, control systems (manual, remote, PLC-based), and finishes to match vessel needs.
Blending space-saving design, robust construction, and certified safety, this crane balances versatility, efficiency, and longevity—an intelligent choice for demanding marine applications.
Product Parameters
| No. | Parameter Category | Specification |
| 1 | SWL | SEE LOAD CHART |
| 2 | MAX. WORKING RADIUS | 10m |
| 3 | MIN. WORKING RADIUS | 2.2m |
| 4 | HOISTING SPEED | ～15m/min |
| 5 | HOISTING HEIGHT | 20m |
| 6 | SLEWING SPEED | ～0.6r/min |
| 7 | SLEWING ANGLE | 360° |
| 8 | FIRST LUFFING TIME | ～50S |
| 9 | SECOND LUFFING TIME | ～50S |
| 10 | WORKING CONDITION - TRIM | ≤2° |
| 10 | WORKING CONDITION - HEEL | ≤5° |
| 11 | WIND SPEED - WORKING CONDITION | 20m/s |
| 11 | WIND SPEED - PARKING CONDITION | 55m/s |
| 12 | ELEC. MOTOR - Model | Y225S - 4 - H |
| 12 | ELEC. MOTOR - POWER | 37KW |
| 12 | ELEC. MOTOR - SPEED | 1780r/min |
| 12 | ELEC. MOTOR - POWER RESOURCE | AC480V/60HZ/3P |
| 12 | ELEC. MOTOR - PROTECT CLASS | F |
| 12 | ELEC. MOTOR - WORKING TYPE | S1 |
| 13 | DESIGN TEMP. | -10°～+40° |
| 13 | Max. Capsizing Moment | 1510 kN·m |
| 13 | Max. Turning Moment | 275 kN·m |
| 13 | Max. Vertical Force | 195 kN |
| 13 | Sea Condition | Grade 4 |

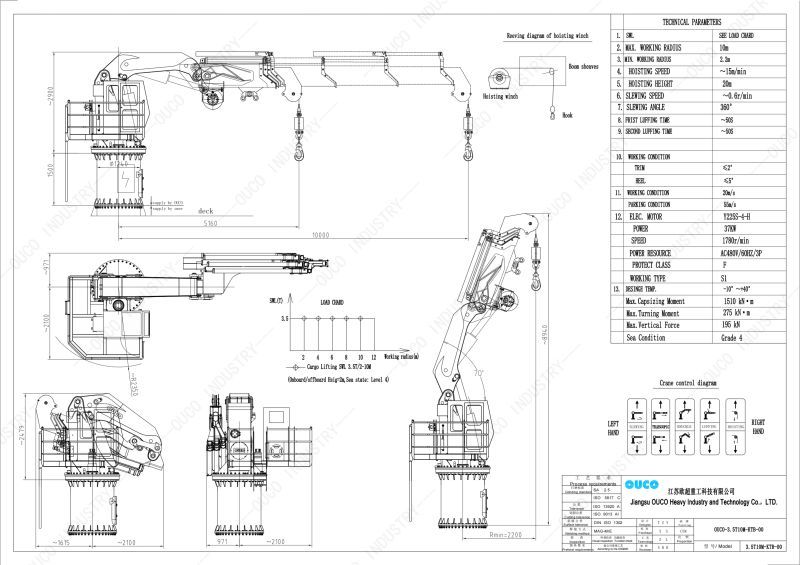

GA Drawing

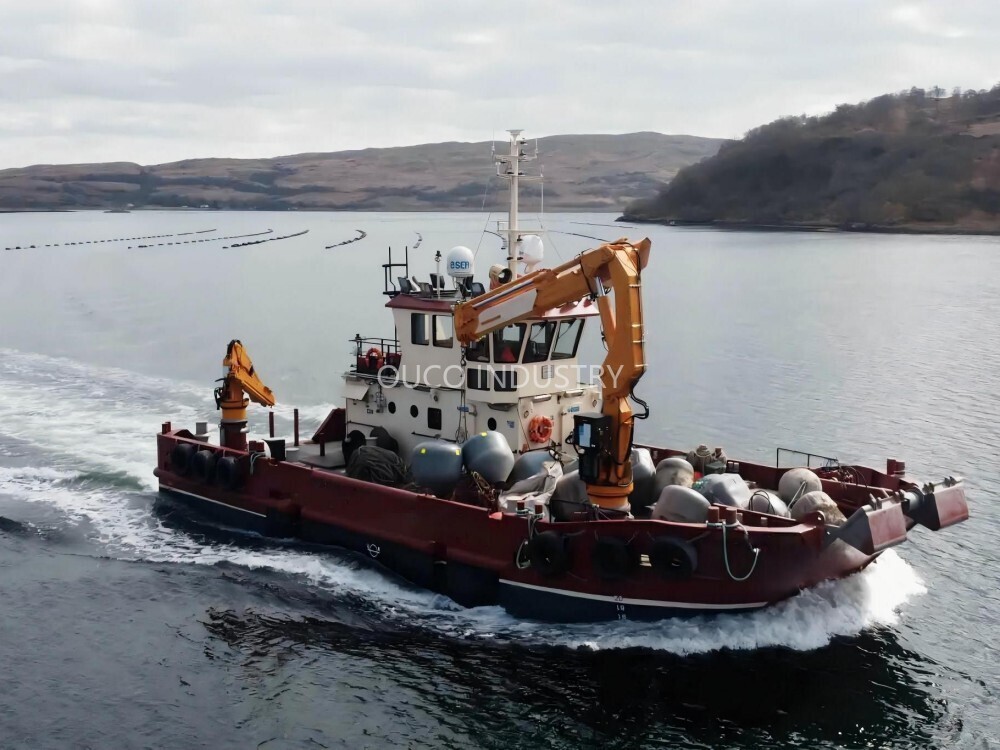

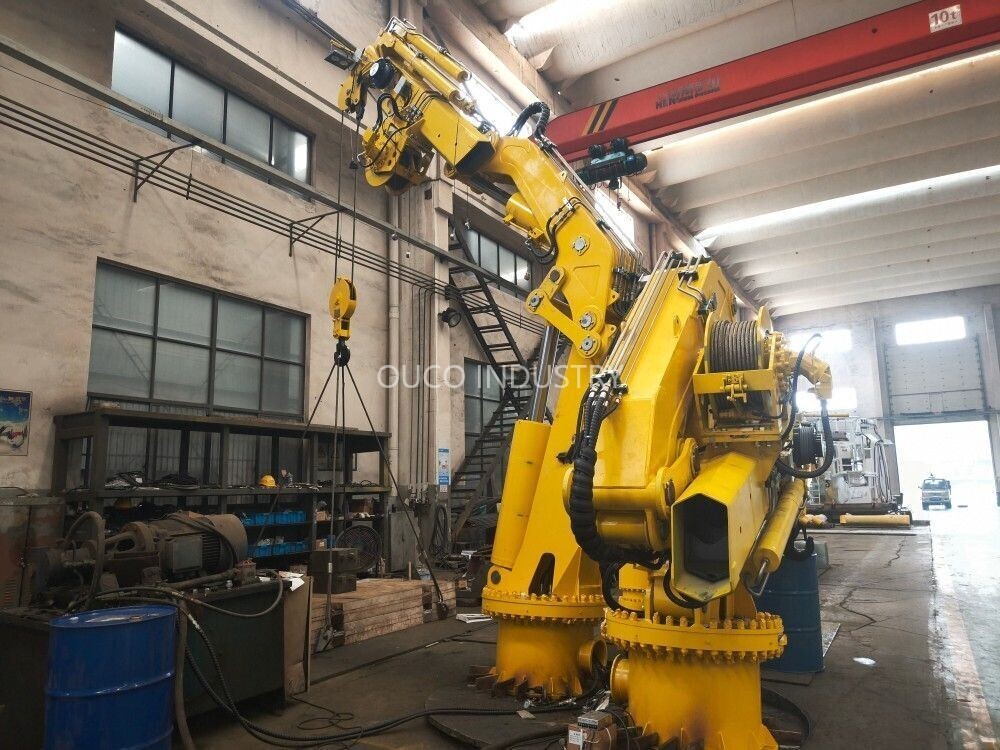

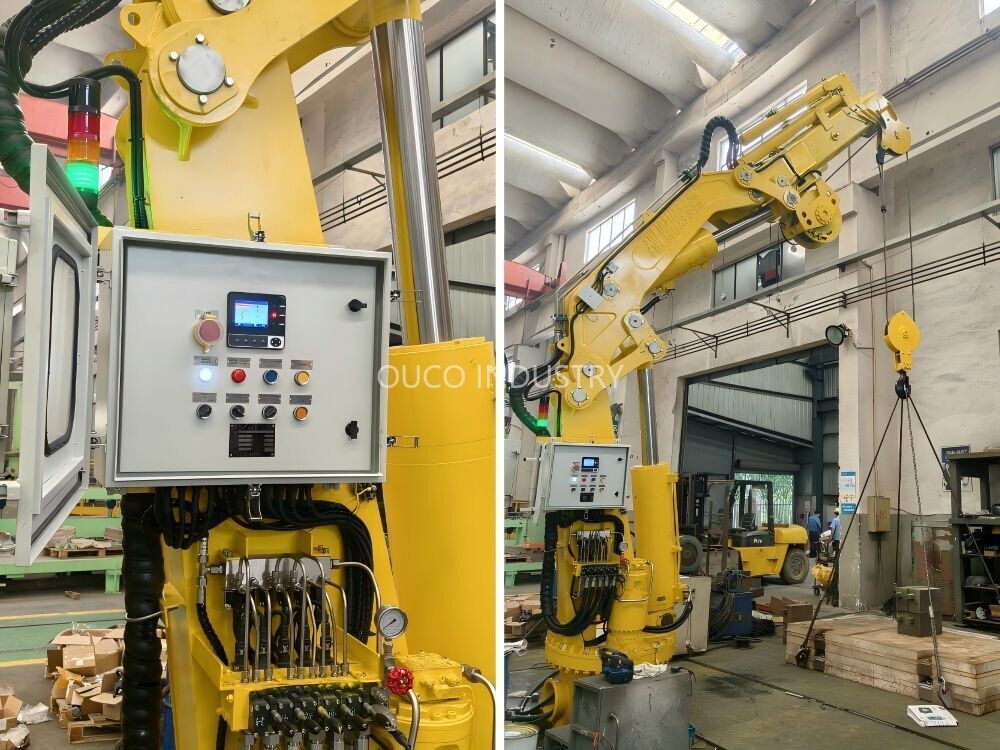

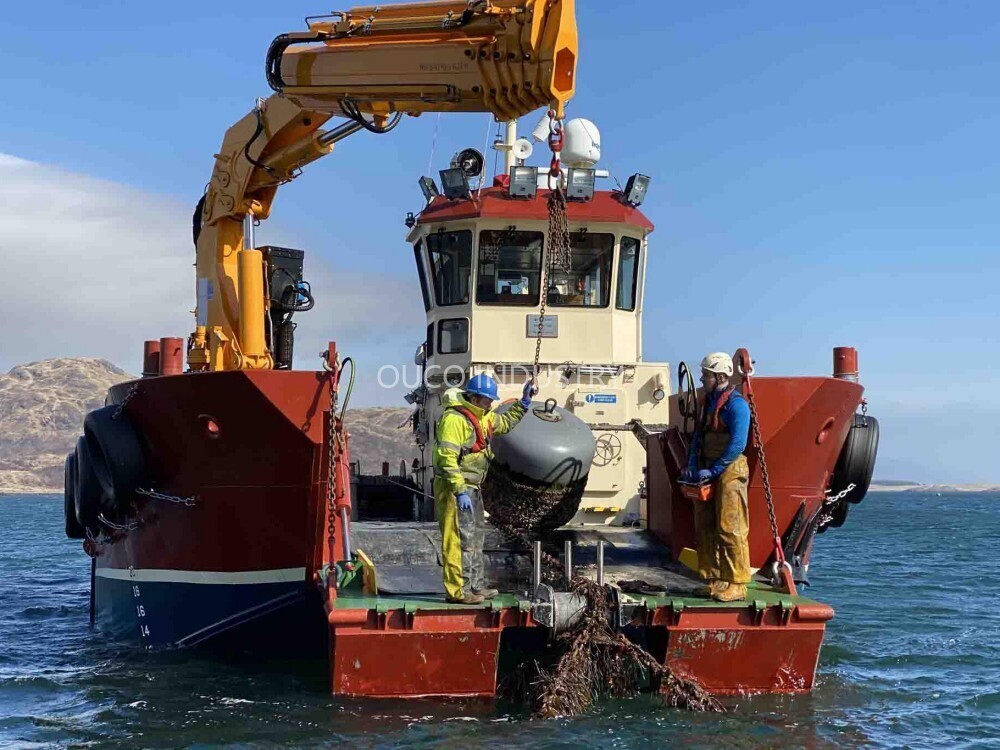

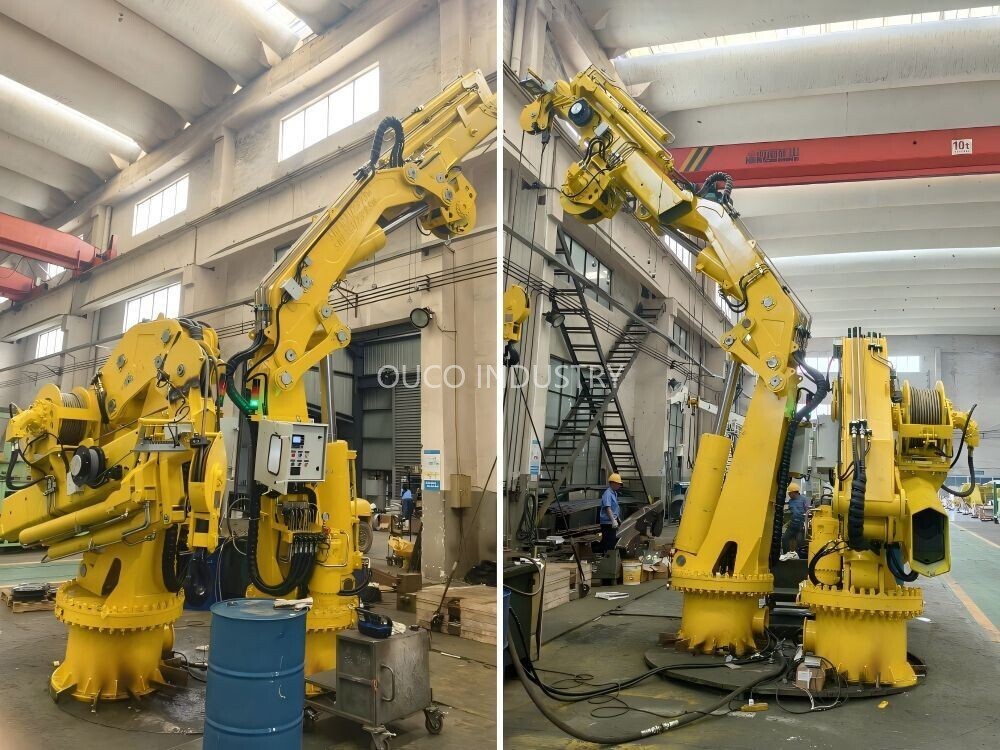

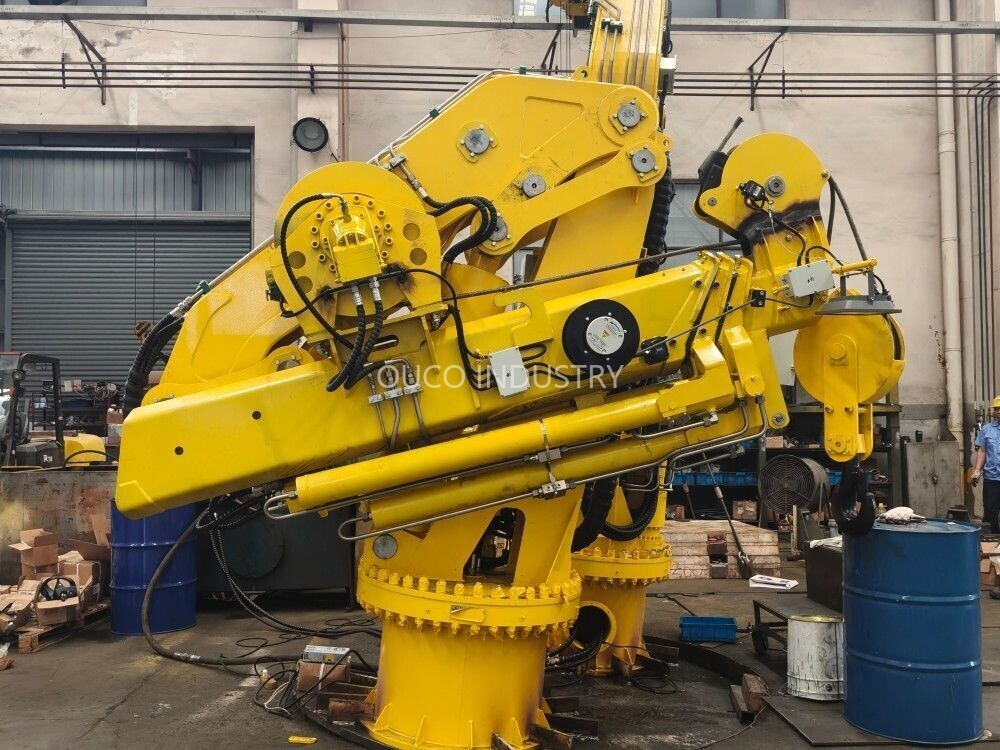

Product Picture
Company Overview
Founded in 1984, OUCO INDUSTRY is a leading manufacturer and supplier of high-quality marine equipment, specializing in cranes, lifting systems, and material handling solutions. With over 40 years of experience, we are known for delivering innovative and reliable products that meet the specific needs of the maritime industry. Our products are trusted by clients worldwide, including those in the luxury yacht, offshore, port, and industrial sectors.
Located in Jiangsu Province, China, our state-of-the-art manufacturing facility spans 48,000 square meters and is equipped with advanced machinery and a team of over 150 skilled professionals. We are committed to ensuring that every product we deliver is engineered to the highest standards of quality, performance, and safety.
