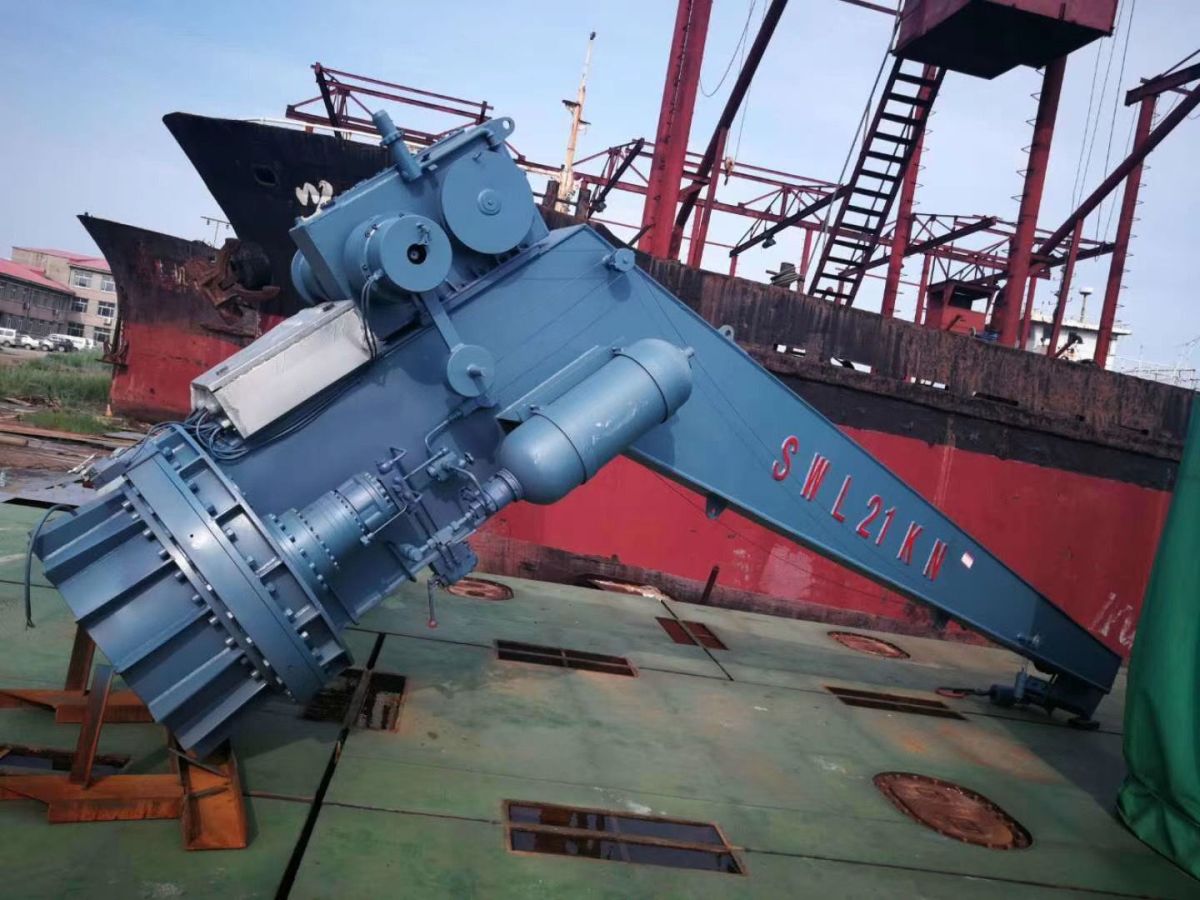

Electric Rescue Boat Davit

Range

Name Max Working Load	Unit kn	Main Data
Name Max Working Load	Unit kn	14	21	23	25	33（for raft）
Slewing Radius	mm	≤5400	≤5400	≤5400	≤5500	≤4500
Max. Slewing Load/Hoisting Load	kn	14
Hoisting Speed of Wire Pop	m/min	≥18
Lowering Speed of Wire Pop	m/min	40-60
Max. Slewing Angle	m	≤330
Min. Slewing Angle	m	≤110
Stored Power Slewing Angle	r/min	0.6-0.8				0.4
Slewing Speed in Stored Power Driven	r/min	≥0.25
Diameter of Wire Pop	mm	Φ16				Φ18
Capacity of Drum	m	30
