• Product Description

    The WOOD GRAB has been designed for load handling in the forestry industry. They can be attached to all standard excavators.

    The WOOD GRAB is characterized by a robust design and construction, high bundling capacity and optimized claw geometry. The two equalizing bars ensure that the closing behavior is uniform.

    The Wood Grab are equipped with a hydraulic rotary drive which offers 360° continuous rotation and features integrated pressure limitation. This enables accurate positioning of the attachment.

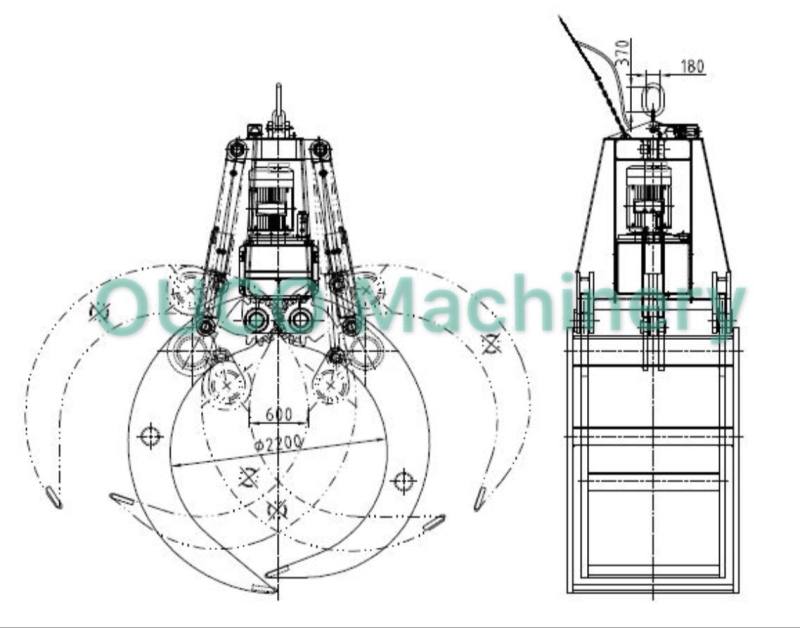

    Genernal Arrangement

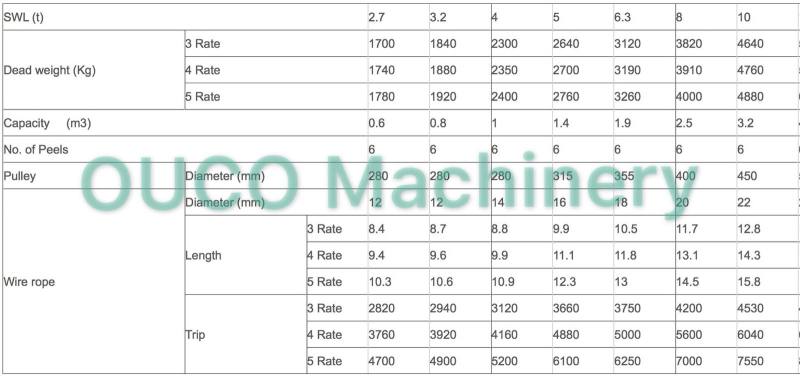

    Technical Parameters

    Our Certifications

    Product Details

    Packing & Shipping

    Our company provides professional packaging and transportation for the products.

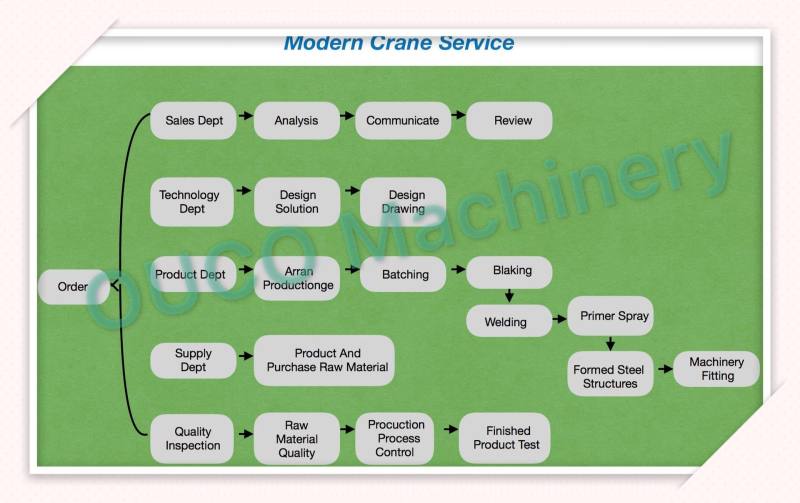

    Our Service



Next:No More

share to:

Wood Grab Bucket
Stable Quality Wood Grab Unit
SWL 2.7-32t
Dead weight(kg) 1700-15360
Capacity (m3) 0.6-10.4
No. of peels 6
Pulley (Diameter)(mm) 280-710
Wire rope Diameter(mm) 12-36
Length 8.4-22.5
Trip 2820-11200
