Product Description

Eco Hopper is an economical and ecologically sensitive solution fulfilling all needs for the efficient import of dry bulk cargoes. The hoppers are designed to suit the characteristics and flow properties of virtually any bulk material.

Main Features And Advantages

1.Extensive dust control features (Flex flaps, dust seals, dust control filters, air compressor)

2.Multiple discharge options: to conveyor, to truck, via telescopic chute, through ancillary Material Feeder

3.Multiple travel options: rail, static or pneumatic tyre mounted and powered and towable travel

4.Increased safety features (level detectors, strain gauges, structurally designed to withstand overload to top of skirt)

5.Robust design (top shroud, grab impact grill)

6.Minimise escape of fugitive dust

7.Fit to any onwards processing or logistics requirements

8.Can be used on non-dedicated quays and moved off the area when not in use

9.Flexible positioning to suit unloading vessel

10.Ability to work with a wide variety of materials with differing characteristics

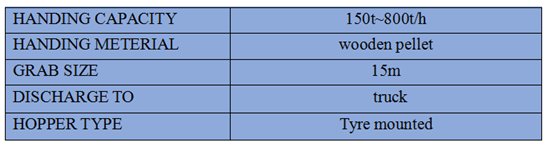

Typecal Techincal Specification for Reference

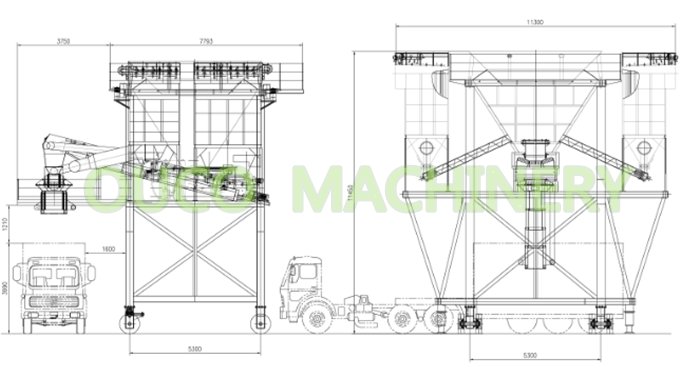

Genernal Arrangement

Our Certifications

Product Details

We have examined every detail in the production process.

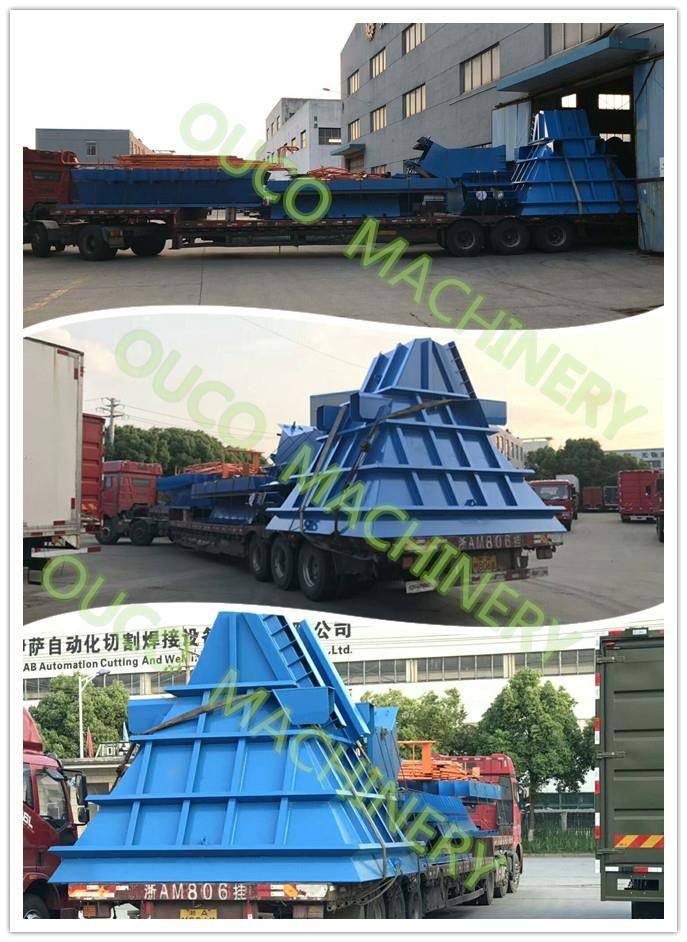

Packing & Shipping

We try to keep shipping as a whole to reduce installation time. It is our pleasure to allow you to use our crane as soon as possible.
