Brief introduction:
The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of OUCO standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.
SB series crane: End User Advantages：
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales service support.

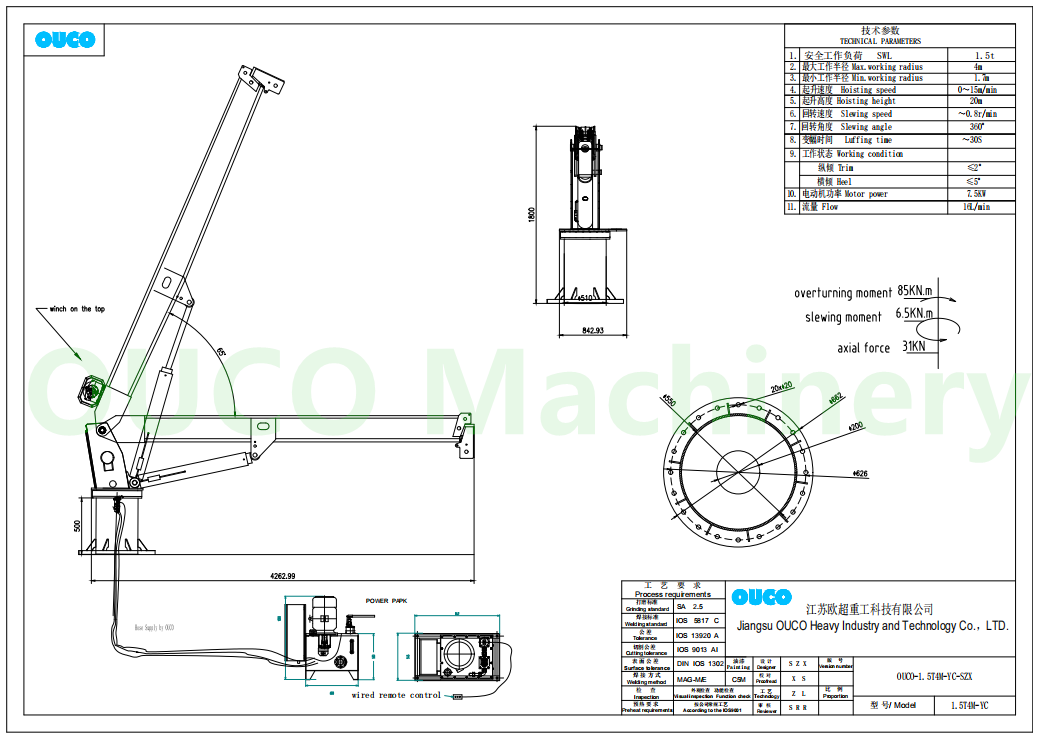

General Arrangement:
Technical Specification:
No. | Item | Specification |
CRANE | SWL | 1.5 t |
Working condition | HEEL≦5° TRIM ≦2° |
Working radius | 3m |
Hoist speed | ~10m/min |
Slewing Speed | 0~0.8r/min |
Slewing Angle | ~360° all free |
Design temperature | -10℃~45℃ |
Self-Weight Of Crane | ~600 kg |
Painting Standard | C5M |
Our Certification
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
