1T10M Folding and Telescopic Boom Marine Crane
Product Description
OUCO provide the 1T10M Knuckle & telescopic boom marine crane, which have Various lifting point. Reliable for general cargo handling service and offshore use. The flexibility of the machine to complete all types of launch and recovery operations.
Our cranes can be used in various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All KB series cranes can be equipped with different accessories and class certified by all leading classification societies.
Product Features
1. Running smoothly, Safety and reliability.
2. Rates of speed can be changed.
3. 360 degrees continually rotary.
4. Both electro hydraulic and manual to control.
5. Compact design, Space saving
6.. Delivered as one complete unit ready for installation to vessels
7. Easy access for periodic maintenance, service and repair
8. easy to operation and installation
Product Information
SWL | 1T10M |
Max Working Radius | 10M |
Min Working Radius | 3M |
Hoisting Speed | 0-12m/min |
Slewing Speed | ~1r/min |
| Hook Travel | 25M |
Slewing Angle | 360° |
| Slewing Speed | 0-1r/min |
Luffing Time | ~35s |
Luffing Angle | ~75° |
Design Temperture | -20°C~+45°C |
Trim | ≤2° |
Heel | ≤5° |
Motor Power | 22kw |
Oil Flow
| 35L/min |
| Dead Weight | 2700kg
|
Speed | 1450r/min |

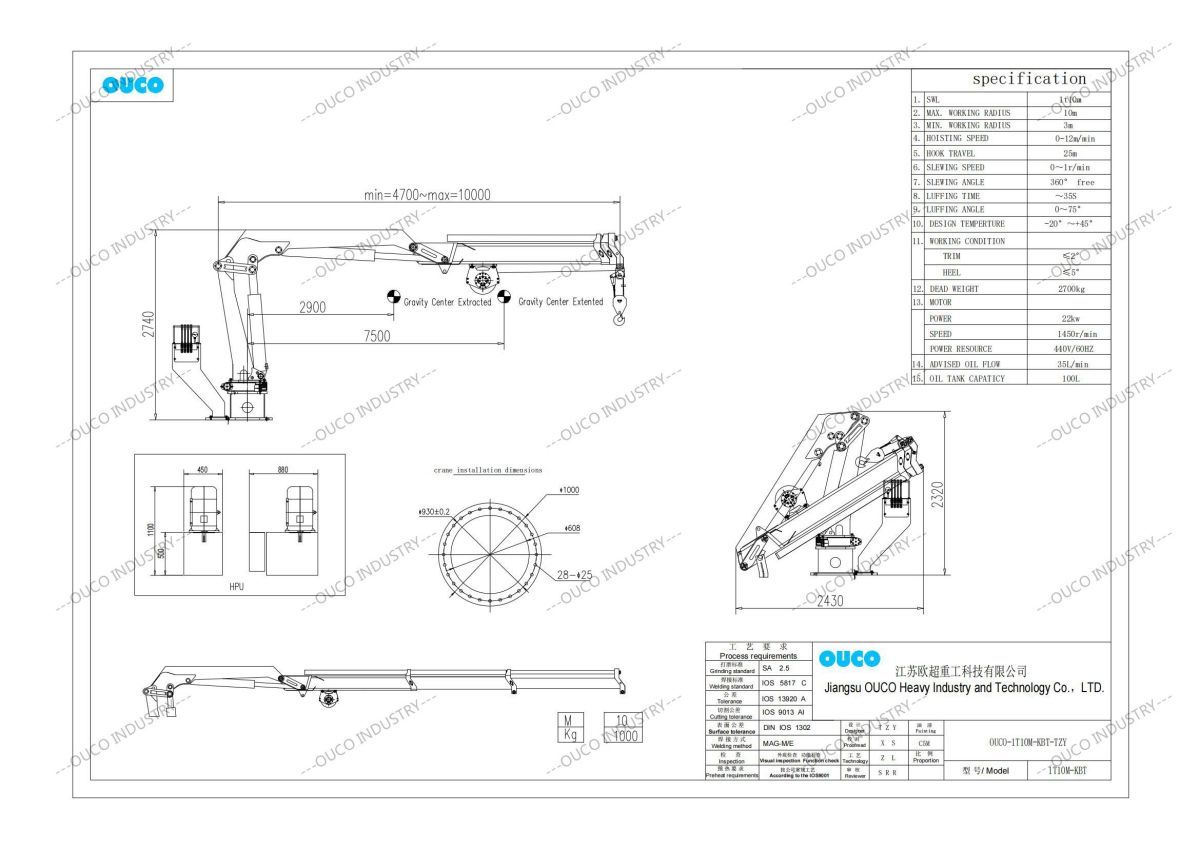

GA Drawing

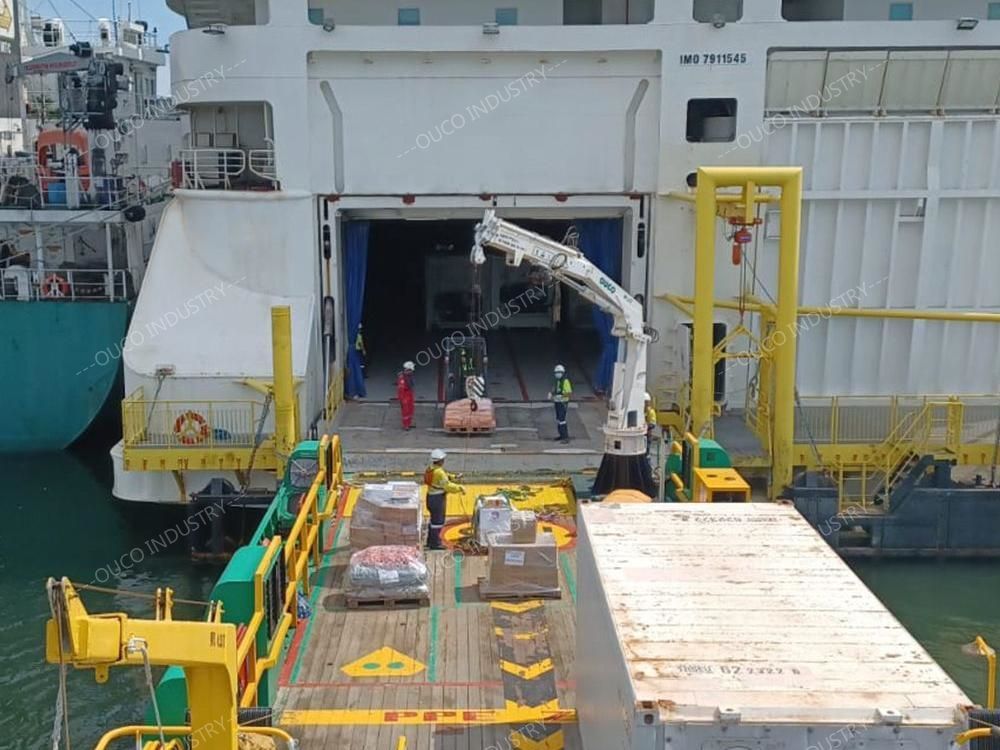

Product Picture
Production Process
Company Information
Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
FAQ
1.Q:What's the information should I provide when inquiry?
A: More details or drawings, better.
a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.
2.Q: How many operating methods for my selection?
A:Standard operating methodsr:
a: pendent controller with push buttons. b: remote control with push buttons
c: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Q:Can this type work in hazardous environment? A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.4. Q:Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
5. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training.
6. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
